Flycolor Raptor TR20 Mini Stack - F722 FC + 60A ESC - 20x20

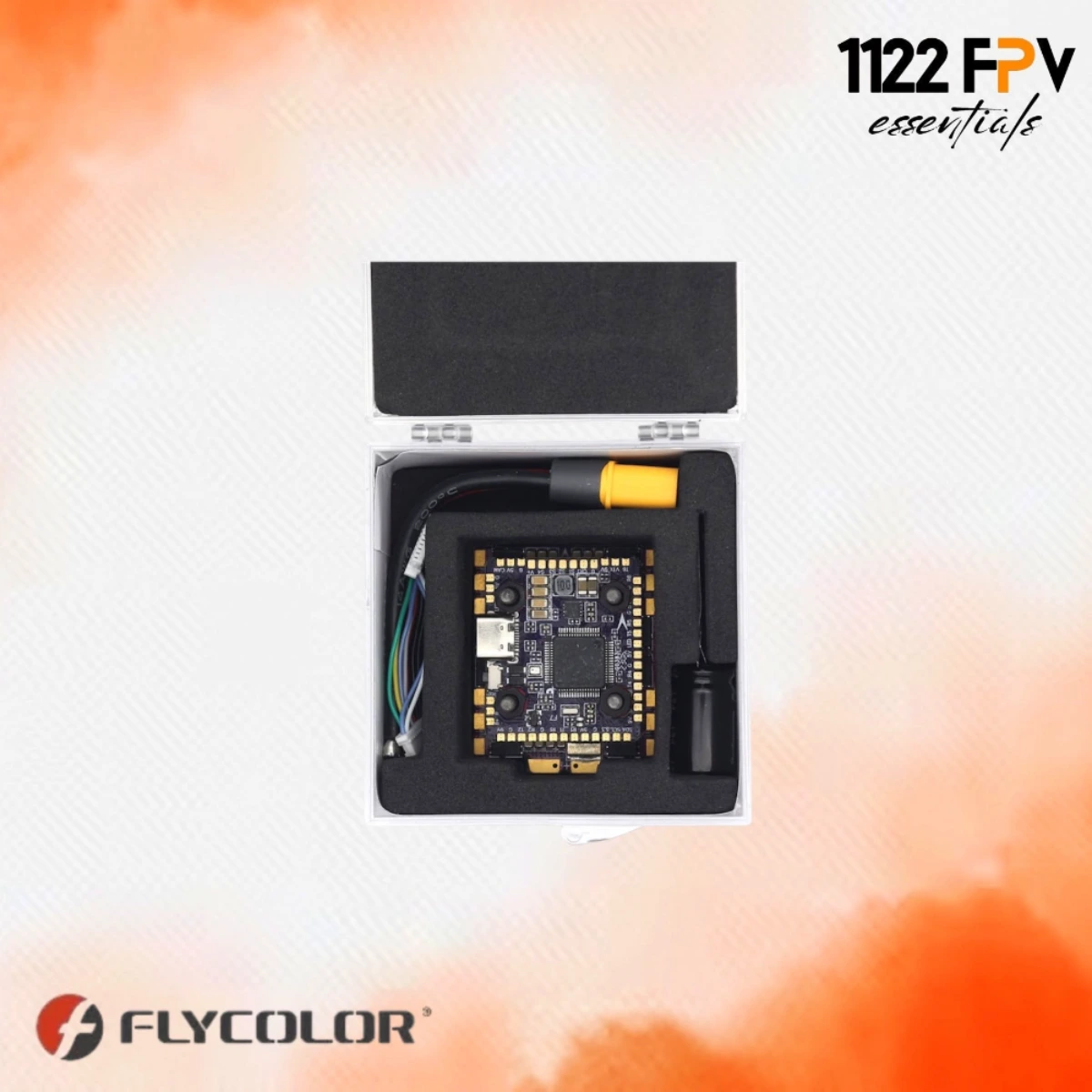

About this product The Flycolor Raptor TR20 Mini Stack features an F722 Flight Controller, equipped with dual VTX and dual LED pads, offering a convenient selection nearby for enhanced customization. With a voltage output range of 3.3V/0.1A, 5V/3A, and 9V/1.5A, this stack ensures stable power distribution. The MPU-6500 SPI gyro and STM32F722 MCU provide precise control, while the 60A ESC, with configurator support via BLHeliSuite32, INAV firmware compatibility, and a 20x20mm mounting pattern, delivers optimal performance for your FPV drone. Compact at 44x36mm and lightweight at 23g, the Raptor TR20 is designed for efficiency, supporting LiPo batteries from 3-6S and making it an ideal choice for your FPV drone and cinematography endeavors. Features - Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling - The code supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and *Multishot - MOSFET with high performance and low Rds, not afraid of large current, more suitable for rapid flight - Miniaturized and lightweight design, better routing, and component layout - Configurator for ESC Parameter setting and upgrading: BLHeliSuite32 - MCU STM32G0, ARM 32-bit Cortex MCU, frequency up to 64 MHz - All Dshot and Proshot signals are supported - 20x20mm, M3 mounting pattern - PWM frequency up to 128K - Flycolor_Raptor_5 firmware - Specifications F722 FLIGHT CONTROLLER: - Dual VTX and dual LED pads for convenient selection nearby. - Voltage output: 3.3V/0.1A, 5V/3A , 9V/1.5A - Gyro: MPU-6500 SPI - FC BEC: 3.3V5V9V - MCU: STM32F722 - Const Curr.: 60A - Size(mm): 44*36 - Burst Curr.: 70A - USB: Type C - Weight: 23G - Lipo: 3-6S 60A ESC: - Configurator for ESC Parameter setting and upgrading: BLHeliSuite32 - INAV firmware is supported： FLYCOLORF7MINI - ARM: 32-bit Cortex, frequency up to 64 MHz - ESC firmware: Flycolor_Raptor_5 - Mounting pattern: 20x20mm, M3 - PWM frequency: up to 128K - MCU: STM32G0 Includes: - 1x Flycolor Raptor TR20 Mini Stack - F722 FC + 60A ESC - 20x20 - 1x 3mm Mounting Accessories Set - 1x ESC /FC connecting wire - 1x Electrolytic capacitor - 1x Power wire(XT60)
